Specification:

Model Name:  KLW-H6B

Overall length:  1200mm

Overall width:    600mm

Overall height (excluding headrest):  1030mm

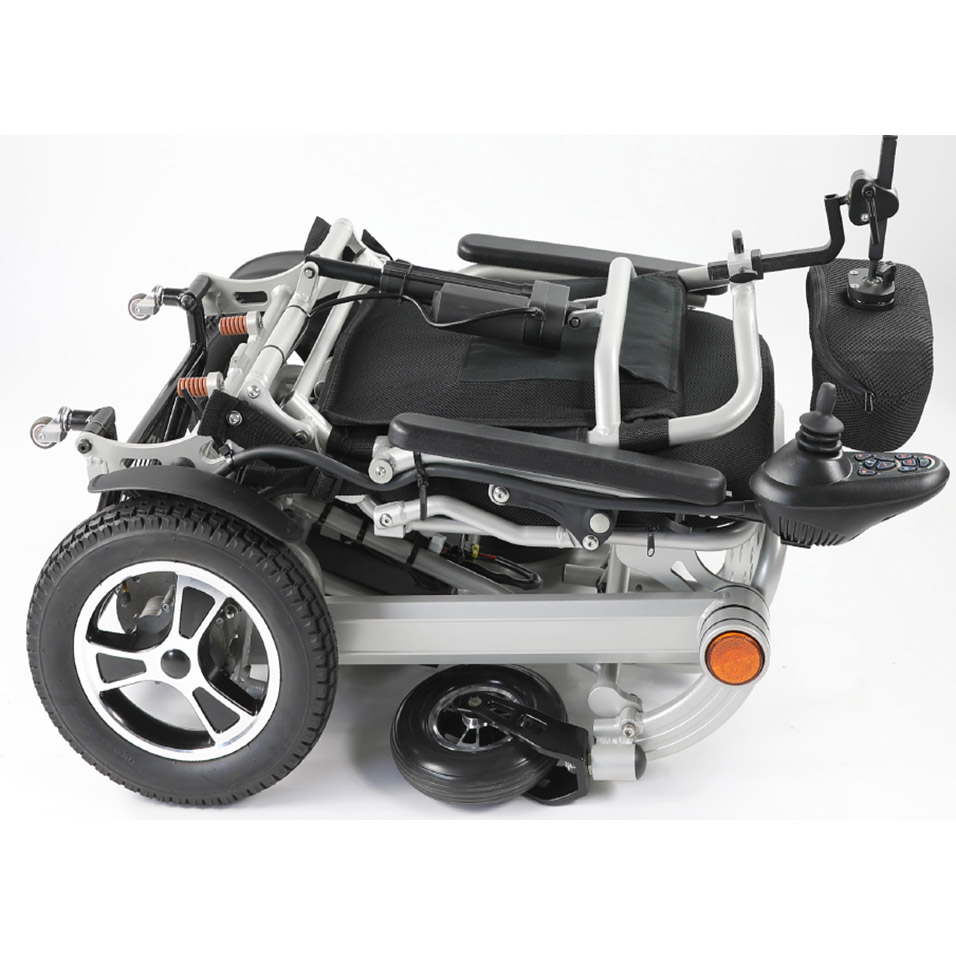

Folded length:  830mm

Folded width:  600mm

Folded height:  750mm

Total gross weight:  96kg

Obstacle crossing ability:  42mm

Dynamic stability downhill:  9°

Dynamic stability uphill:  9°

Lateral dynamic stability:  15°

Longitudinal dynamic stability:  15°

Seat plane angle:  0°~ 28±2°

Seat depth:  520mm

Seat width:  450mm

Seat height:  540mm

Reclining (electrical control) :  90°~128°（±2°）

Height of backrest:  560mm

Distance from footrest to seat:  450mm

Angle of footrest to seat:  6°

Distance of handrail to seat:  260mm

Minimum turning radius:  850mm

Max speed:  6km/h

Reverse speed:  2.5km/h

Braking distance:  900mm

Battery capacity:  24V18Ah

Max loading:  150kg

Controller:   HZ-XF50A

Motor: 24V 150W

Wheel: Front PU 8” , Rear 12.5” Pneumatic tire

Max range:  18km±2km

Charging time: 7-8h

Charger: DC 24V-5.0A

Max climbing slope:  15°

Frame material:  aluminum

Operation: remote control
